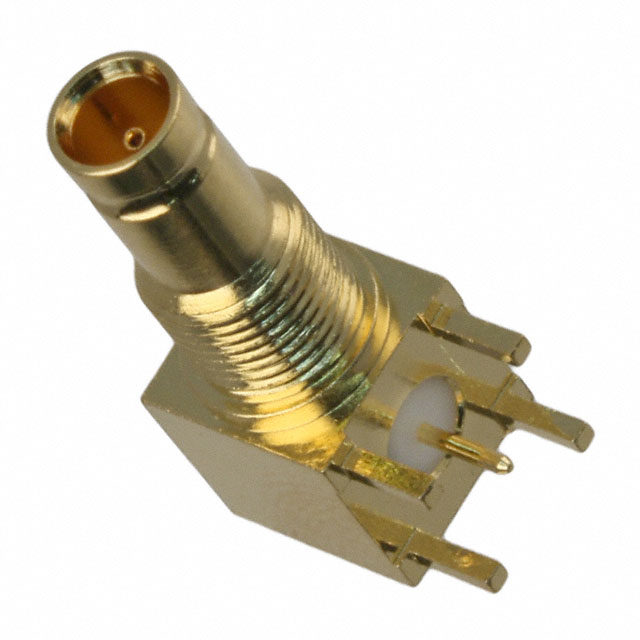

282100-75
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 282100-75 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 282100-75 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 282100-75 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN 1.0/2.3 RCPT R/A 75 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.961 | $3.788 | $3.444 | $3.272 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.186 | $2.841 | $2.669 | $2.359 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 282100-75 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN 1.0/2.3 RCPT R/A 75 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15364 pcs | Data sheet | 282100-75 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 28210075 ACX1782 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Gold | Frequency - Max | 3GHz |
| Features | - | Fastening Type | Push-Pull |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | 1.0/2.3 Connector Receptacle, Female Socket 75 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Female Socket |
| Connector Style | 1.0/2.3 | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper, Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
