252135

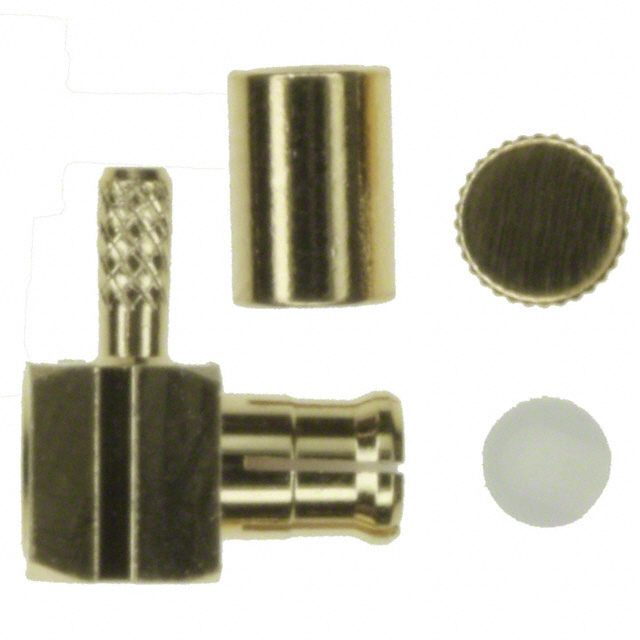

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 252135 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 252135 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 252135 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN MCX PLUG R/A 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.063 | $2.935 | $2.68 | $2.552 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.424 | $2.169 | $2.042 | $1.786 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 252135 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN MCX PLUG R/A 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17616 pcs | Data sheet | MCX Connector Catalog252135 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 225V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | ACX1492 |
| Operating Temperature | -40°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.1dB | Ingress Protection | - |
| Includes | 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE) | Detailed Description | MCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | MCX | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-178, 178A, 178B, 196, 196A, M17/93-RG178 |
| Body Material | Beryllium Copper | Body Finish | Gold |
