182323

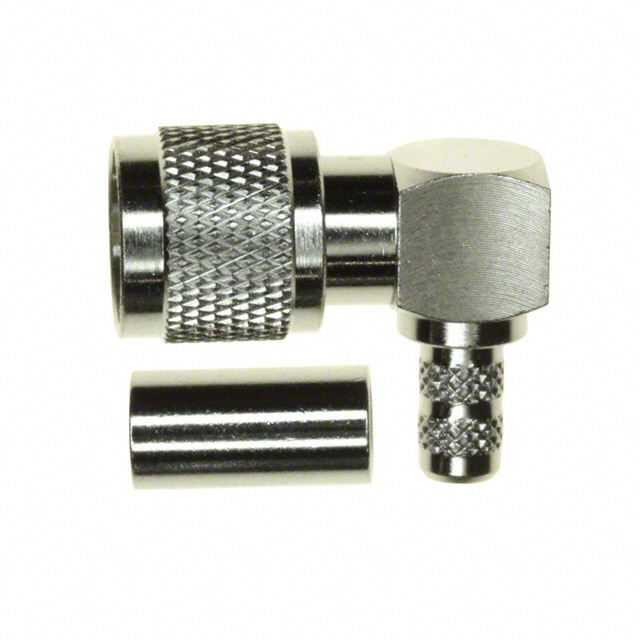

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 182323 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 182323 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 182323 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN MINI UHF PLUG R/A 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.742 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 182323 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN MINI UHF PLUG R/A 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12305 pcs | Data sheet | 182323 DrawingUHF_MINI-UHF Connector |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | ACX1527 |
| Operating Temperature | -55°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 2.5GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | UHF, Mini Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | UHF, Mini | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
| Body Material | Brass | Body Finish | Nickel |
