182118

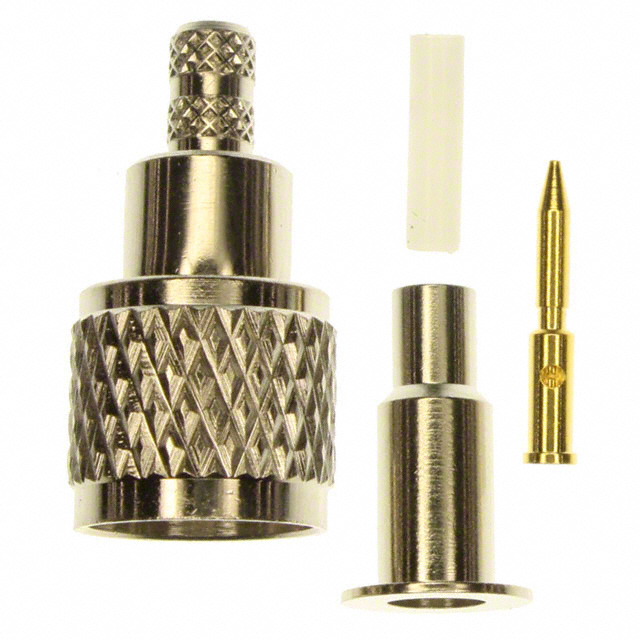

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 182118 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 182118 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 182118 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN MINI UHF PLUG STR 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.141 | $1.095 | $1.004 | $0.958 | $0.913 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.798 | $0.776 | $0.662 | $0.616 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 182118 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN MINI UHF PLUG STR 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63973 pcs | Data sheet | 182118 DrawingUHF_MINI-UHF Connector |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | ACX1522 |
| Operating Temperature | -55°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 2.5GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polyoxymethylene (POM) Acetal | Detailed Description | UHF, Mini Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | UHF, Mini | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Body Material | Brass | Body Finish | Nickel |
