182109

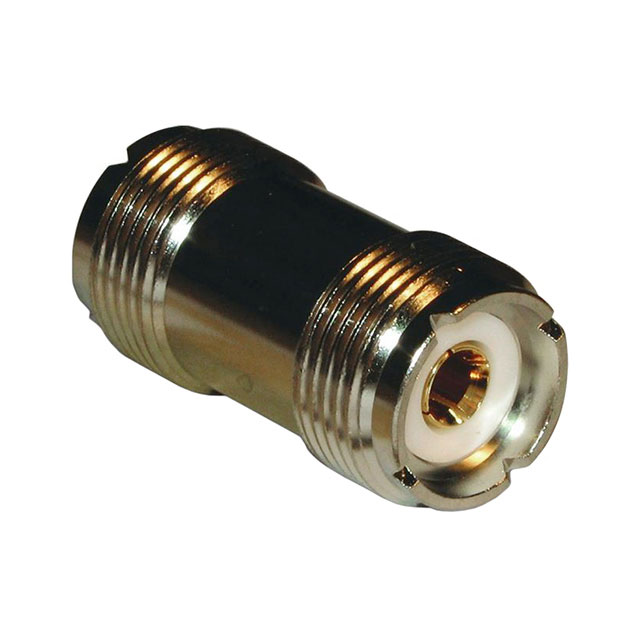

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 182109 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 182109 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 182109 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT JACK-JACK UHF 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 14 pcs | ||||
|---|---|---|---|---|---|
| $3.212 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 182109 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT JACK-JACK UHF 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10844 pcs | Data sheet | 182109 DrawingUHF_MINI-UHF Connector |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Operating Temperature | -65°C ~ 165°C | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Frequency - Max | 2.5GHz |
| Features | - | Fastening Type | Threaded, Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | Adapter Coaxial Connector UHF Jack, Female Socket To UHF Jack, Female Socket 50 Ohm |
| Convert To (Adapter End) | UHF Jack, Female Socket | Convert From (Adapter End) | UHF Jack, Female Socket |
| Conversion Type | Same Series | Center Gender | Female to Female |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Body Material | Brass | Body Finish | Nickel |
| Adapter Type | Jack to Jack | Adapter Series | UHF to UHF |
