172336
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 172336 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 172336 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 172336 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT JACK TO PLUG N 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $9.511 | $8.585 | $8.226 | $7.711 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $7.454 | $7.043 | $6.838 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 172336 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT JACK TO PLUG N 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4663 pcs | Data sheet | 172336 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | ACX2154 | Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

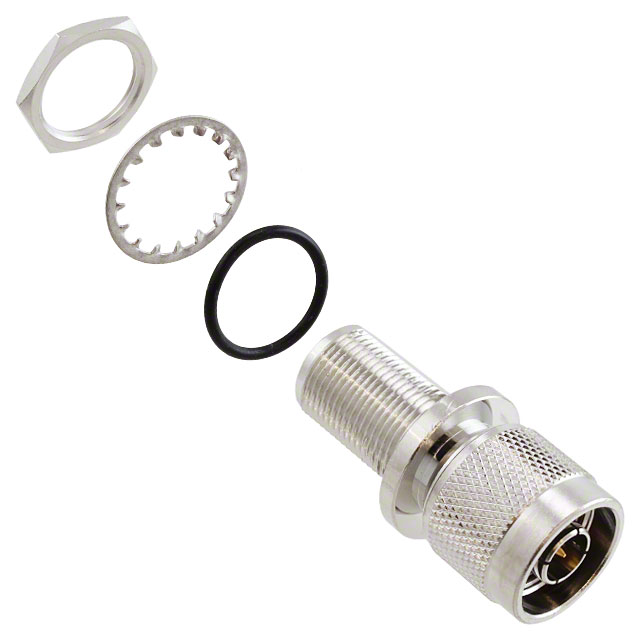

| Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Frequency - Max | 11GHz | Features | - |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector N Jack, Female Socket To N Plug, Male Pin 50 Ohm | Convert To (Adapter End) | N Plug, Male Pin |
| Convert From (Adapter End) | N Jack, Female Socket | Conversion Type | Same Series |
| Center Gender | Female to Male | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Body Material | Brass |
| Body Finish | White Bronze | Adapter Type | Plug to Jack |
| Adapter Series | N to N |
