172276

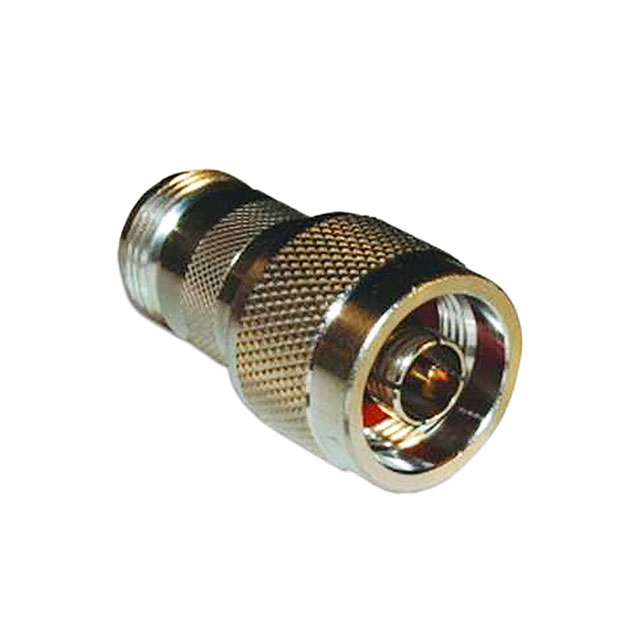

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 172276 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 172276 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 172276 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT PLUG TO JACK N 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.848 | $6.359 | $5.707 | $5.543 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.891 | $4.565 | $4.467 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 172276 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT PLUG TO JACK N 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7052 pcs | Data sheet | 172276 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | 172276-ND ACX2060 |
Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Frequency - Max | 11GHz | Features | - |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector N Plug, Male Pin To N Jack, Female Socket 50 Ohm | Convert To (Adapter End) | N Jack, Female Socket |
| Convert From (Adapter End) | N Plug, Male Pin | Conversion Type | Same Series |
| Center Gender | Female to Male | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Body Material | Brass |
| Body Finish | White Bronze | Adapter Type | Plug to Jack |
| Adapter Series | N to N |
