172266

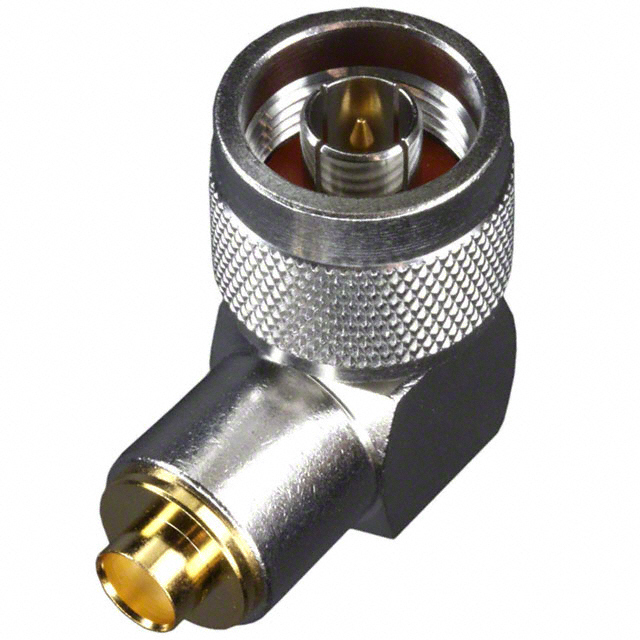

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 172266 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 172266 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 172266 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN N PLUG R/A 50 OHM PUSH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.603 | $5.094 | $4.967 | $4.585 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.33 | $3.948 | $3.693 | $3.388 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 172266 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN N PLUG R/A 50 OHM PUSH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8812 pcs | Data sheet | 172266 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 1500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | ACX1481 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.15dB | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Push On |
| Contact Termination | Push On | Connector Type | Plug, Male Pin |
| Connector Style | N Type | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | RG-401 (.250" Semi Rigid) |
| Body Material | Brass | Body Finish | White Bronze |
