172243
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 172243 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 172243 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 172243 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN N RCPT STR 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.453 | $4.956 | $4.832 | $4.46 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.213 | $3.841 | $3.593 | $3.296 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 172243 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN N RCPT STR 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9376 pcs | Data sheet | 172243 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 1500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | ACX1442 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount, Through Hole | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.15dB | Ingress Protection | Weatherproof |

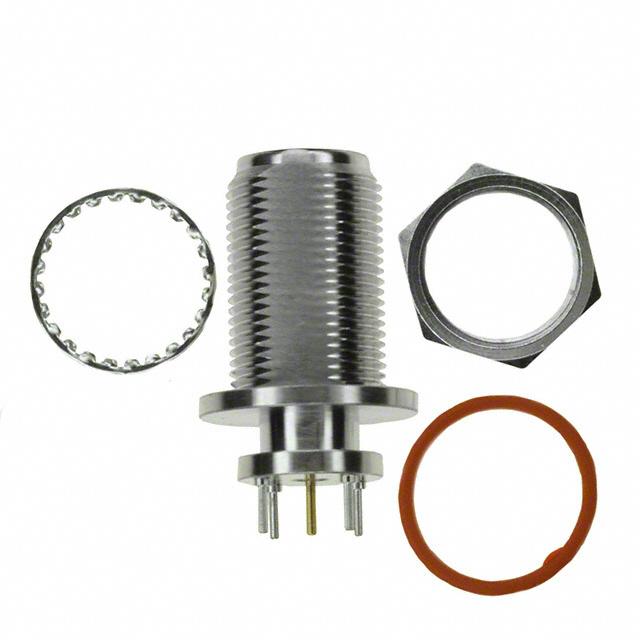

| Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | N Type Connector Receptacle, Female Socket 50 Ohm Panel Mount, Through Hole Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Female Socket |
| Connector Style | N Type | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | White Bronze |
