162109
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 162109 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 162109 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 162109 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |

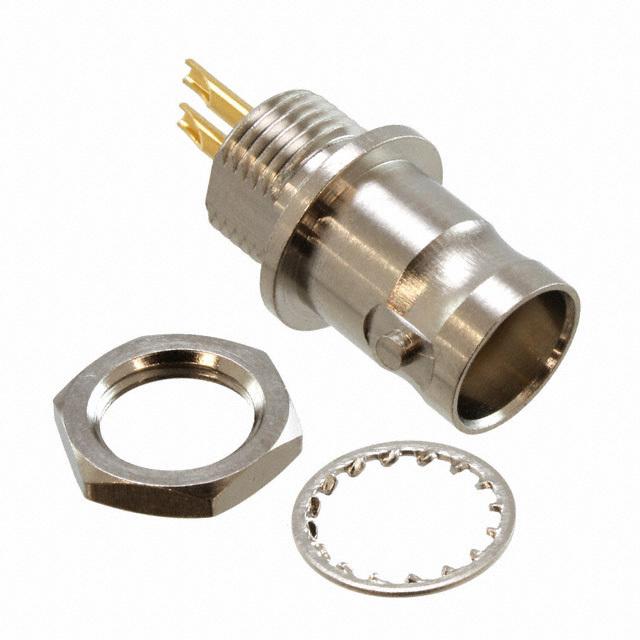

| Description | CONN BNC TWIN JACK STR 78 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.753 | $2.638 | $2.408 | $2.294 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.179 | $1.95 | $1.835 | $1.606 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 162109 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC TWIN JACK STR 78 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21788 pcs | Data sheet | 162109 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 162109-ND ACX2067 |
Operating Temperature | -40°C ~ 60°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 78 Ohm | Housing Color | Silver |
| Frequency - Max | 200MHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polybutylene Terephthalate (PBT) |
| Detailed Description | BNC, Twinaxial Connector Jack, Female Socket and Male Pin 78 Ohm Panel Mount Solder Cup | Contact Termination | Solder Cup |
| Connector Type | Jack, Female Socket and Male Pin | Connector Style | BNC, Twinaxial |
| Center Contact Plating | Gold | Center Contact Material | Brass; Phosphor Bronze |
| Cable Group | - | Body Material | Brass |
| Body Finish | Nickel |
