152134

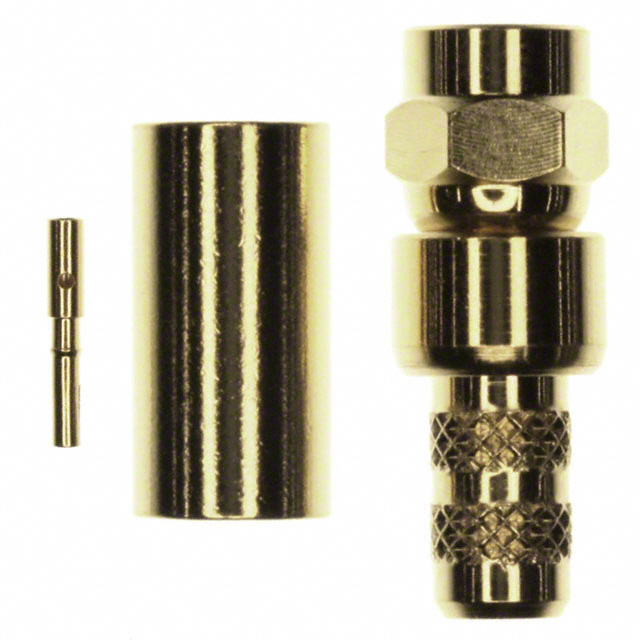

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 152134 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 152134 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 152134 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMC PLUG STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.57 | $3.416 | $3.105 | $2.95 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.873 | $2.562 | $2.407 | $2.127 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 152134 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMC PLUG STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15522 pcs | Data sheet | 152134 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | ACX1501 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.3dB | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 10GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMC Connector Plug, Female Socket 50 Ohm Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Plug, Female Socket |
| Connector Style | SMC | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
| Body Material | Brass | Body Finish | Gold |
