152119

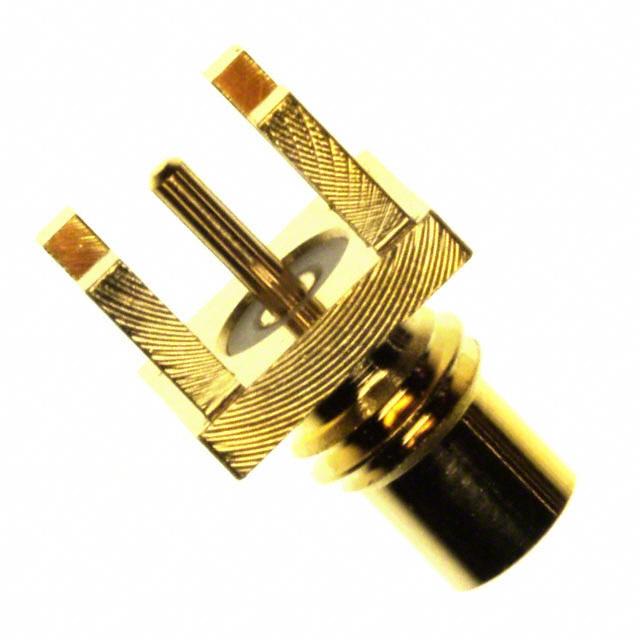

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 152119 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 152119 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 152119 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMC JACK STR 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.443 | $1.385 | $1.269 | $1.212 | $1.154 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.01 | $0.981 | $0.837 | $0.779 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 152119 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMC JACK STR 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49335 pcs | Data sheet | 152119 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | ACX1507 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Through Hole | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.3dB | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 10GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMC Connector Jack, Male Pin 50 Ohm Through Hole Solder |
| Contact Termination | Solder | Connector Type | Jack, Male Pin |
| Connector Style | SMC | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
