152107
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 152107 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 152107 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 152107 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMC PLUG R/A 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.233 | $3.093 | $2.812 | $2.671 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.601 | $2.32 | $2.179 | $1.926 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 152107 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMC PLUG R/A 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17747 pcs | Data sheet | 152107 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | ACX1504 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.6dB | Ingress Protection | - |

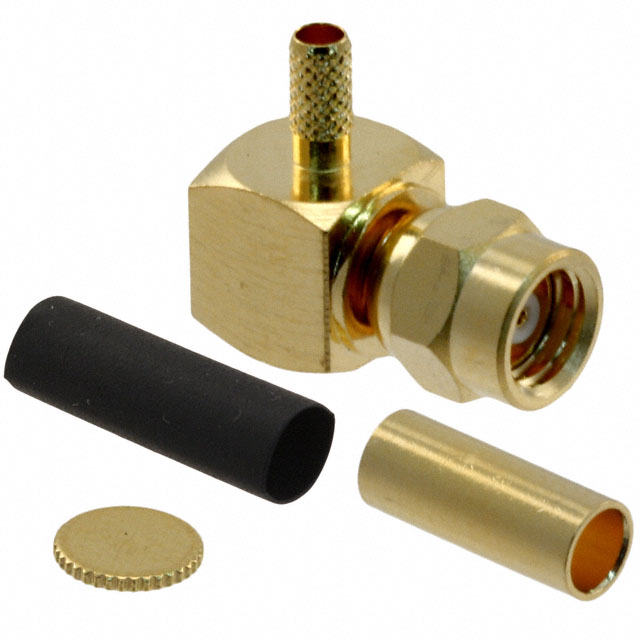

| Includes | 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 10GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMC Connector Plug, Female Socket 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Female Socket |
| Connector Style | SMC | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Body Material | Brass | Body Finish | Gold |
