142301
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 142301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 142301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 142301 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMB JACK STR 50 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $4.484 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 142301 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMB JACK STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6949 pcs | Data sheet | 142301 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | ACX1303 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.3dB | Ingress Protection | - |

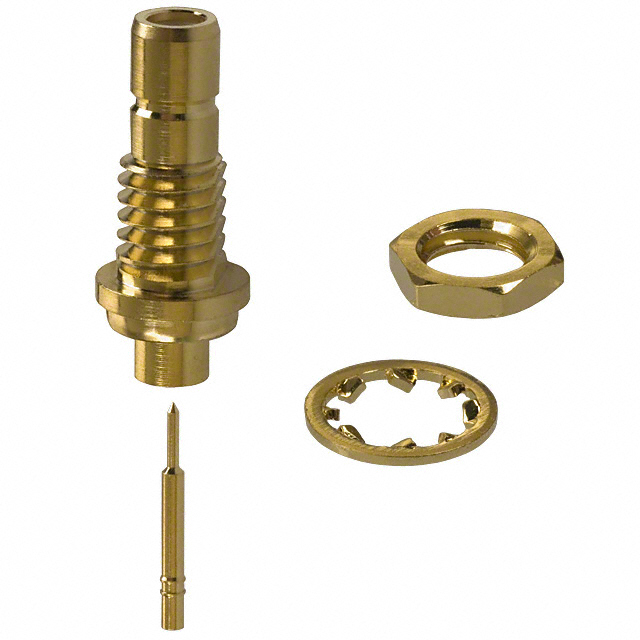

| Includes | 4 pcs - 1 Connector, 1 Contact, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMB Connector Jack, Male Pin 50 Ohm Panel Mount Crimp or Solder |
| Contact Termination | Crimp or Solder | Connector Type | Jack, Male Pin |
| Connector Style | SMB | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-405 (.085", .086" Semi Rigid) |
| Body Material | Brass | Body Finish | Gold |
