142249-75

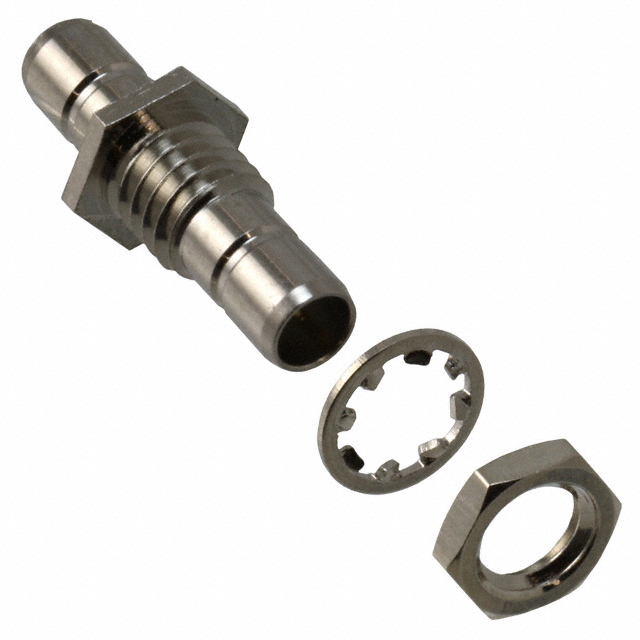

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 142249-75 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 142249-75 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 142249-75 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT JACK-JACK SMB MINI |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.937 | $5.513 | $4.948 | $4.807 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.241 | $3.958 | $3.874 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 142249-75 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT JACK-JACK SMB MINI | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8684 pcs | Data sheet | 142249-75 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | 142249-75-ND 14224975 ACX2220 |
Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 75 Ohm |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Snap-On, Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector SMB Mini Jack, Male Pin To SMB Mini Jack, Male Pin 75 Ohm | Convert To (Adapter End) | SMB Mini Jack, Male Pin |
| Convert From (Adapter End) | SMB Mini Jack, Male Pin | Conversion Type | Same Series |
| Center Gender | Male to Male | Center Contact Plating | Gold |
| Center Contact Material | Brass | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Jack to Jack |
| Adapter Series | SMB Mini to SMB Mini |
