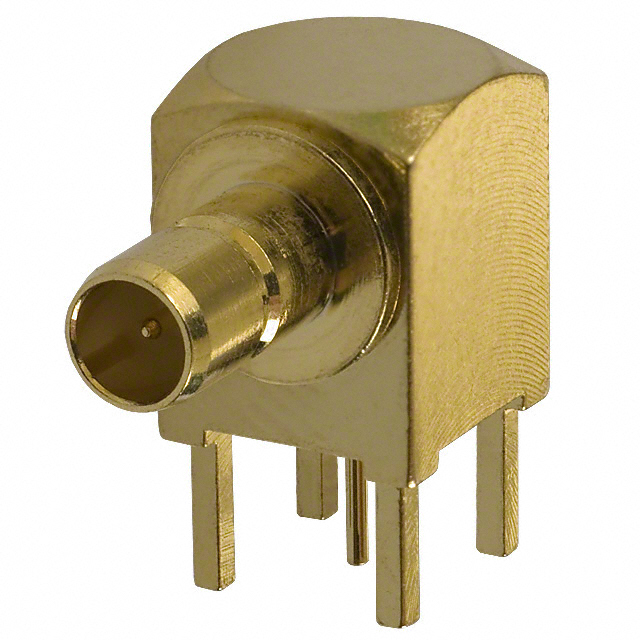

142146-75
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 142146-75 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 142146-75 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 142146-75 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN MINI SMB JACK R/A 75OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.53 | $2.426 | $2.215 | $2.11 | $2.004 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.793 | $1.688 | $1.477 | $1.403 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 142146-75 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN MINI SMB JACK R/A 75OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21966 pcs | Data sheet | 142146-75 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 14214675 ACX1317 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.6dB |
| Ingress Protection | - | Includes | - |
| Impedance | 75 Ohm | Housing Color | Gold |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMB, Mini Connector Jack, Male Pin 75 Ohm Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Male Pin |
| Connector Style | SMB, Mini | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
