132422
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 132422 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 132422 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 132422 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMA JACK STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.978 | $4.526 | $4.413 | $4.074 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.847 | $3.508 | $3.282 | $3.01 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 132422 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMA JACK STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12020 pcs | Data sheet | 132422 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 132422-ND ARF2956 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |

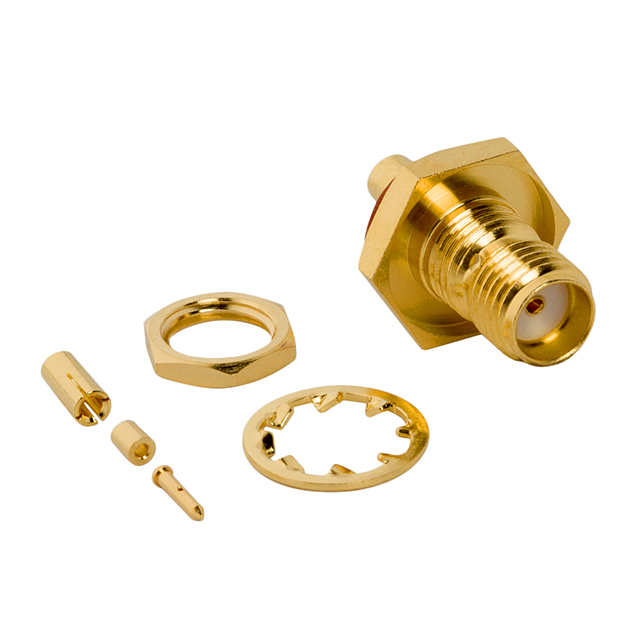

| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | 8 pcs - 1 Connector, 1 Contact, 1 Gasket, 2 Insulators, 1 Lockwasher, 1 Nut, 1 Sleeve |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMA Connector Jack, Female Socket 50 Ohm Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | SMA |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | 1.13mm Coaxial Cable | Body Material | Brass |
| Body Finish | Gold |
