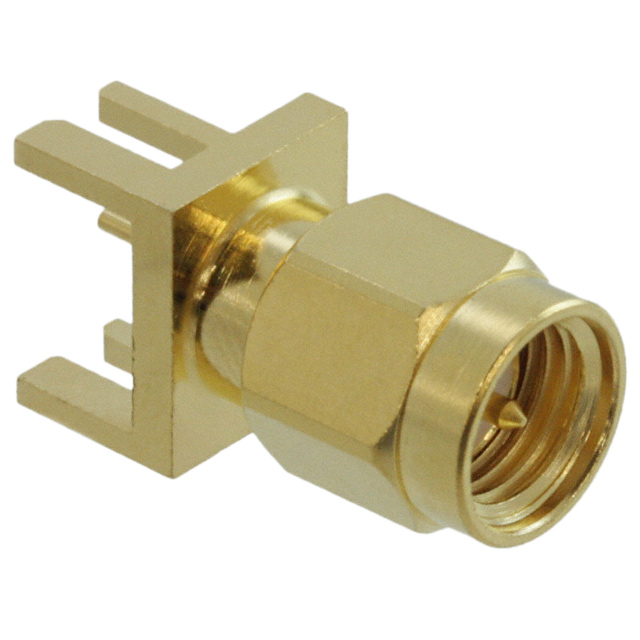

132366-10
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 132366-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 132366-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 132366-10 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMA PLUG STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.42 | $4.927 | $4.804 | $4.435 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.188 | $3.819 | $3.572 | $3.277 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 132366-10 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMA PLUG STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11027 pcs | Data sheet | 132366-10 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 13236610 ACX1912 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Board Edge, End Launch |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | Weatherproof | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 18GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMA Connector Plug, Male Pin 50 Ohm Board Edge, End Launch Solder | Contact Termination | Solder |
| Connector Type | Plug, Male Pin | Connector Style | SMA |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
