132322

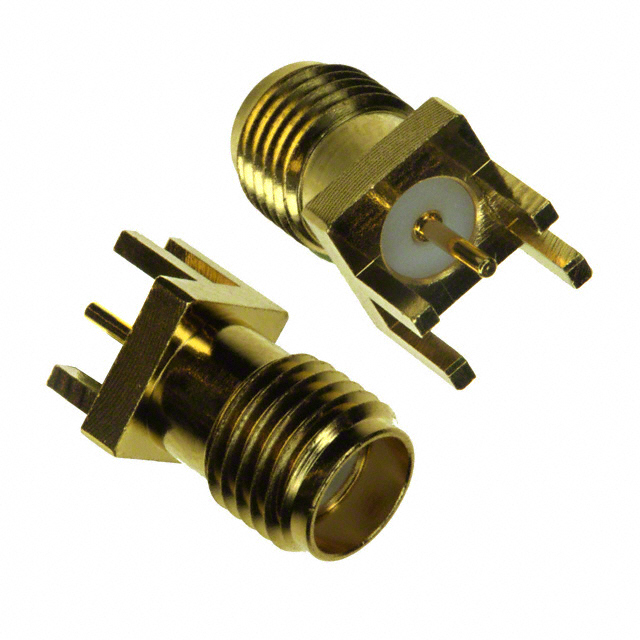

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 132322 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 132322 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 132322 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMA RCPT STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.496 | $2.393 | $2.185 | $2.081 | $1.977 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.769 | $1.665 | $1.457 | $1.384 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 132322 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMA RCPT STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27936 pcs | Data sheet | 132322 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | ACX1652 | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Board Edge, End Launch |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 18GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMA Connector Receptacle, Female Socket 50 Ohm Board Edge, End Launch Solder | Contact Termination | Solder |
| Connector Type | Receptacle, Female Socket | Connector Style | SMA |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
