122502

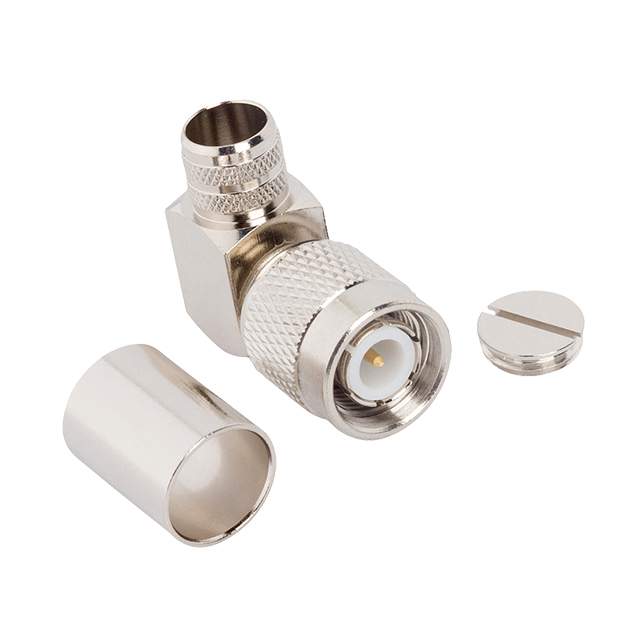

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 122502 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 122502 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 122502 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN TNC PLUG R/A 50OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.974 | $2.844 | $2.585 | $2.456 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.391 | $2.133 | $2.004 | $1.771 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 122502 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN TNC PLUG R/A 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21854 pcs | Data sheet | 122502 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 122502-ND ARF2943 |
| Operating Temperature | - | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.18dB | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | TNC Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | TNC | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393 |
| Body Material | Brass | Body Finish | Nickel |
