122490RP

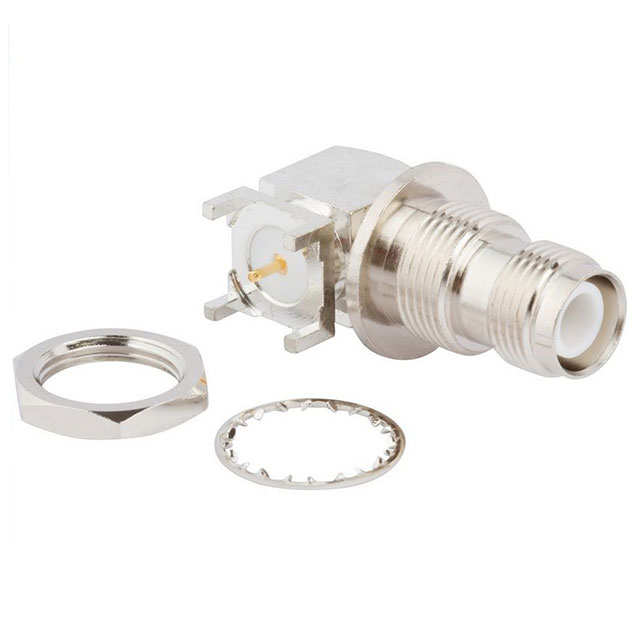

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 122490RP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 122490RP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 122490RP |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN RP-TNC JACK R/A 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.041 | $3.674 | $3.582 | $3.306 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.122 | $2.847 | $2.663 | $2.443 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 122490RP | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN RP-TNC JACK R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13070 pcs | Data sheet | 122490RP Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 122490RP-ND ARF2939 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.18dB | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | RP-TNC Connector Jack, Male Pin 50 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Male Pin |
| Connector Style | RP-TNC | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
