122428

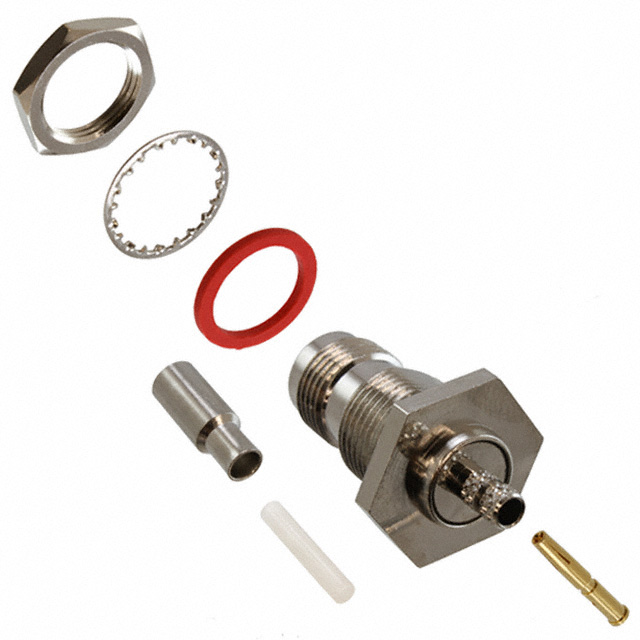

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 122428 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 122428 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 122428 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN TNC JACK STR 50 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.501 | $2.396 | $2.187 | $2.083 | $1.979 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.771 | $1.666 | $1.458 | $1.385 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 122428 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN TNC JACK STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28134 pcs | Data sheet | 122428 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 122428-ND ACX2084 |
| Operating Temperature | - | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.18dB | Ingress Protection | - |
| Includes | 7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 1 Sleeve | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | TNC Connector Jack, Female Socket 50 Ohm Panel Mount Crimp |
| Contact Termination | Crimp | Connector Type | Jack, Female Socket |
| Connector Style | TNC | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Body Material | Brass | Body Finish | Nickel |
