122346
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 122346 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 122346 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 122346 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT JACK-JACK TNC 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.329 | $3.937 | $3.838 | $3.543 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.346 | $3.051 | $2.854 | $2.618 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 122346 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT JACK-JACK TNC 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11673 pcs | Data sheet | 122346 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | 122346-ND ACX2085 |
Operating Temperature | - |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

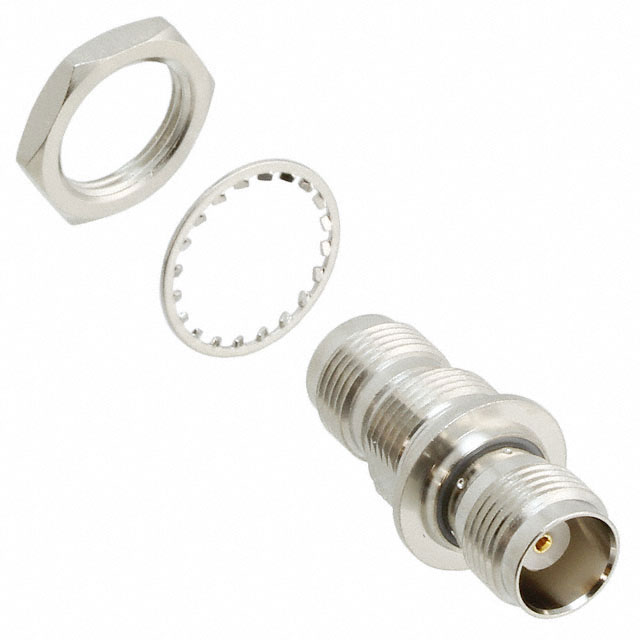

| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Frequency - Max | 11GHz | Features | Isolated |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polyoxymethylene (POM) Acetal |
| Detailed Description | Adapter Coaxial Connector TNC Jack, Female Socket To TNC Jack, Female Socket 50 Ohm | Convert To (Adapter End) | TNC Jack, Female Socket |
| Convert From (Adapter End) | TNC Jack, Female Socket | Conversion Type | Same Series |
| Center Gender | Female to Female | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Jack to Jack |
| Adapter Series | TNC to TNC |
