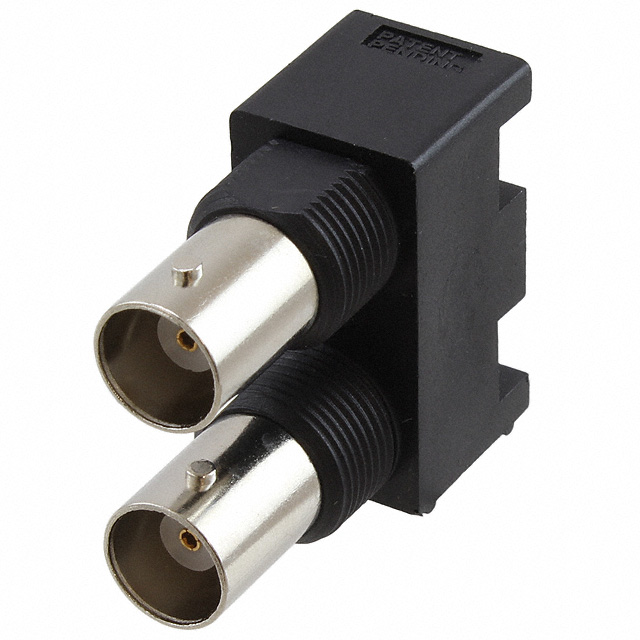

112705
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 112705 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 112705 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 112705 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC JACK R/A 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.291 | $3.147 | $2.861 | $2.718 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.646 | $2.36 | $2.217 | $1.96 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 112705 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC JACK R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18498 pcs | Data sheet | 112705 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | ACX2286 |
| Operating Temperature | - | Number of Ports | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Black, Silver | Frequency - Max | 4GHz |
| Features | Board Lock | Fastening Type | Bayonet Lock |
| Dielectric Material | Polypropylene (PP) | Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Tin |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Zinc Die Cast | Body Finish | Nickel |
