112577
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 112577 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 112577 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 112577 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC JACK STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.038 | $5.607 | $5.031 | $4.888 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.313 | $4.025 | $3.939 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 112577 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC JACK STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7935 pcs | Data sheet | 112577 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Clamp | Series | - |
| Packaging | Bulk | Other Names | ACX2271 |
| Operating Temperature | - | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.2dB | Ingress Protection | Weatherproof |

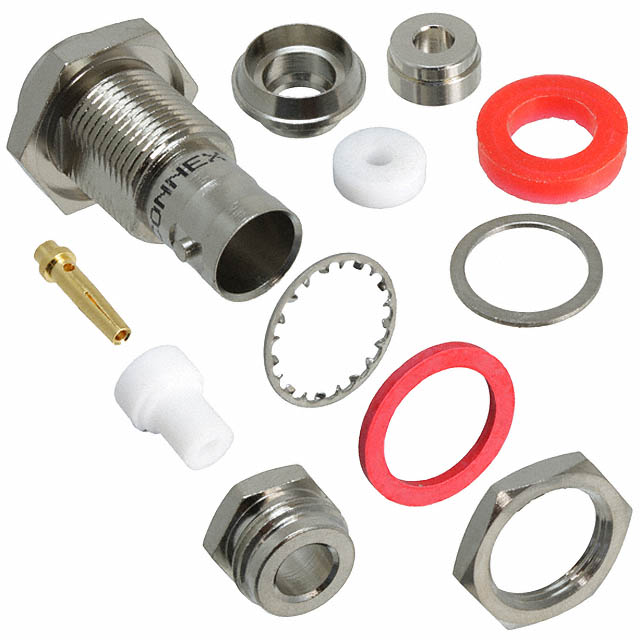

| Includes | 12 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 2 Gaskets, 2 Insulators, 1 Lockwasher, 1 Nut, 1 Ring, 1 Washer | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Panel Mount Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
| Body Material | Brass | Body Finish | Nickel |
