112421
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 112421 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 112421 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 112421 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC RCPT STR 75 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.212 | $2.123 | $1.946 | $1.858 | $1.769 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.548 | $1.504 | $1.283 | $1.194 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 112421 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC RCPT STR 75 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29169 pcs | Data sheet | 112421 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder Tag | Series | - |
| Packaging | Bulk | Other Names | ACX1848 |
| Operating Temperature | - | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

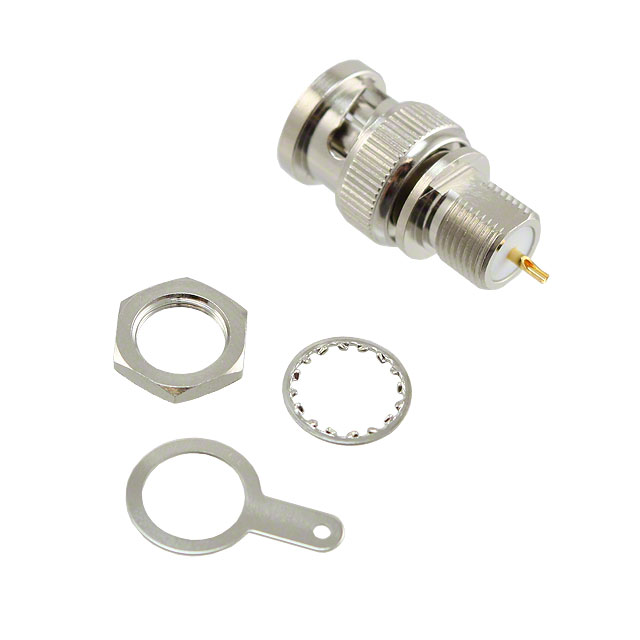

| Includes | 4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Receptacle, Male Pin 75 Ohm Panel Mount Solder Cup |
| Contact Termination | Solder Cup | Connector Type | Receptacle, Male Pin |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
