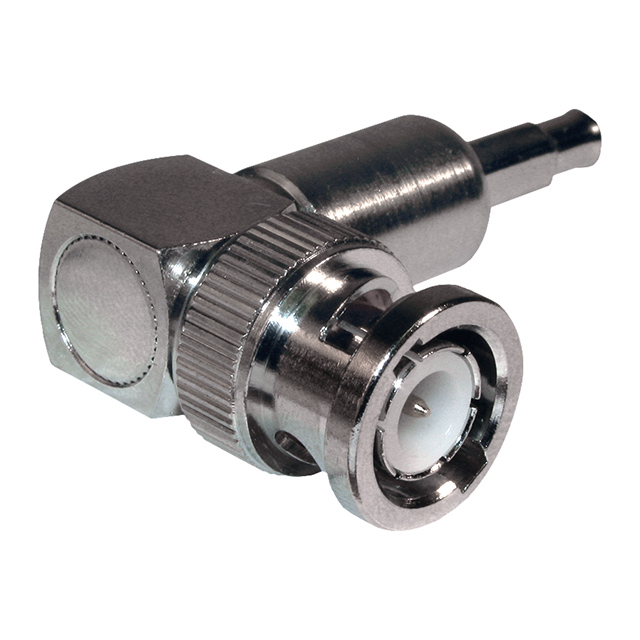

112198
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 112198 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 112198 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 112198 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC PLUG R/A 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.713 | $2.60 | $2.374 | $2.261 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.148 | $1.921 | $1.808 | $1.582 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 112198 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC PLUG R/A 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24556 pcs | Data sheet | 112198 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 112198-ND ARF2885 |
| Operating Temperature | - | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.2dB | Ingress Protection | - |
| Includes | 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polyoxymethylene (POM) Acetal | Detailed Description | BNC Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Body Material | Brass | Body Finish | Nickel |
