082-346-RFX

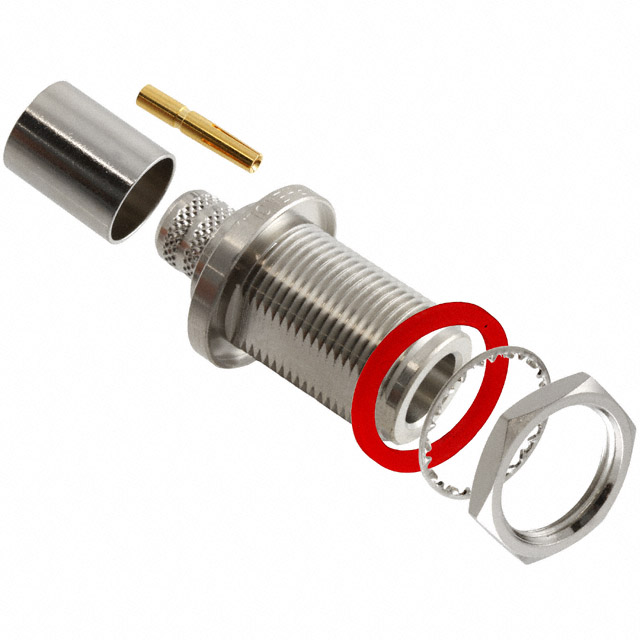

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 082-346-RFX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 082-346-RFX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 082-346-RFX |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN N JACK STR 50 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.787 | $5.372 | $4.821 | $4.684 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.133 | $3.857 | $3.774 | $3.582 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 082-346-RFX | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN N JACK STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9659 pcs | Data sheet | 082-346-RFX DrawingBulkhead Jacks Type N |
| Category | Connectors, Interconnects | Voltage Rating | 1500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 082346RFX 82-346-RFX ARFX1794 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.15dB | Ingress Protection | Weatherproof |
| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | N Type Connector Jack, Female Socket 50 Ohm Panel Mount Crimp |
| Contact Termination | Crimp | Connector Type | Jack, Female Socket |
| Connector Style | N Type | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393 |
| Body Material | Brass | Body Finish | Nickel |
