034-5012

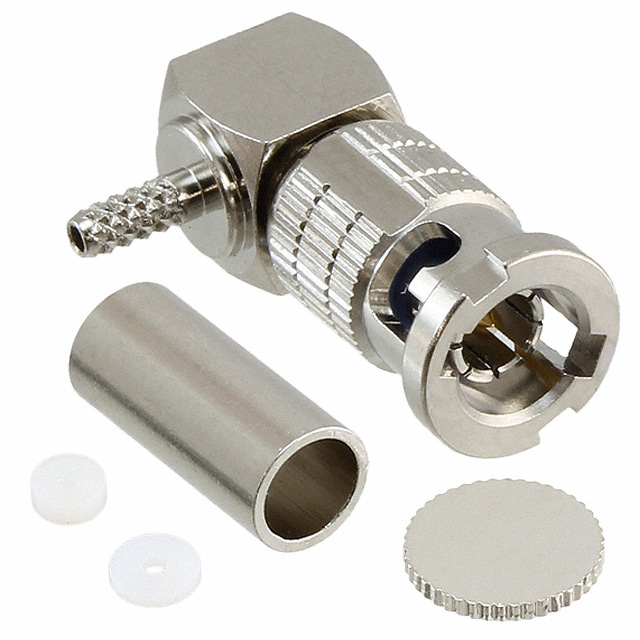

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 034-5012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 034-5012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 034-5012 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN HDBNC PLUG R/A 50OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.278 | $3.134 | $2.85 | $2.707 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.636 | $2.351 | $2.208 | $1.952 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 034-5012 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN HDBNC PLUG R/A 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18556 pcs | Data sheet | 034-5012 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 34-5012 ARF2103 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC, HD Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder | Contact Termination | Solder |
| Connector Type | Plug, Male Pin | Connector Style | BNC, HD |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Cable Group | RG-178, 178A, 178B, 196, 196A, M17/93-RG178 | Body Material | Brass |
| Body Finish | Nickel |
