031-70238
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 031-70238 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 031-70238 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 031-70238 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC PLUG STR 75 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.553 | $1.491 | $1.367 | $1.305 | $1.243 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.087 | $1.056 | $0.901 | $0.839 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 031-70238 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC PLUG STR 75 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36192 pcs | Data sheet | 031-70238 DrawingBNC Connector Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 31-70238 3170238 ARF1846 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.2dB | Ingress Protection | - |

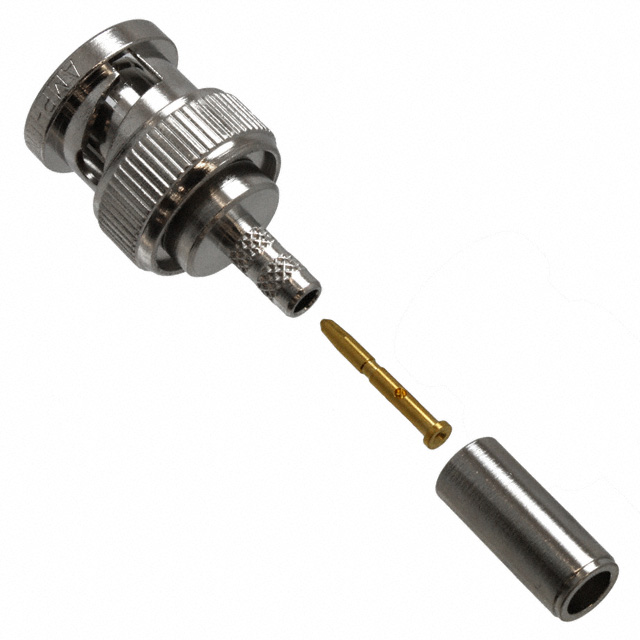

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp |
| Contact Termination | Crimp | Connector Type | Plug, Male Pin |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | AT&T 735, 735A, Belden 735A1 |
| Body Material | Brass | Body Finish | Nickel |
