031-5486-10RFX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 031-5486-10RFX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 031-5486-10RFX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 031-5486-10RFX |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC RCPT R/A 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.491 | $2.387 | $2.18 | $2.076 | $1.972 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.765 | $1.661 | $1.453 | $1.381 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 031-5486-10RFX | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC RCPT R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28387 pcs | Data sheet | 031-5486-10RFX Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Tray | Other Names | 031548610RFX 31-5486-10RFX ARFX2140 |
| Operating Temperature | -55°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.2dB | Ingress Protection | - |

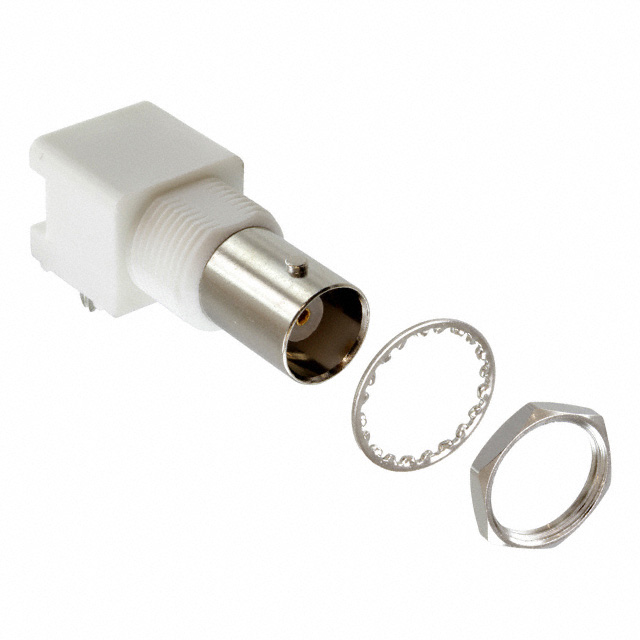

| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver, White | Frequency - Max | 1GHz |
| Features | Board Lock, Isolated | Fastening Type | Bayonet Lock |
| Dielectric Material | Polypropylene (PP) | Detailed Description | BNC Connector Receptacle, Female Socket 50 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Zinc Die Cast | Body Finish | Nickel |
