031-2301-RFX

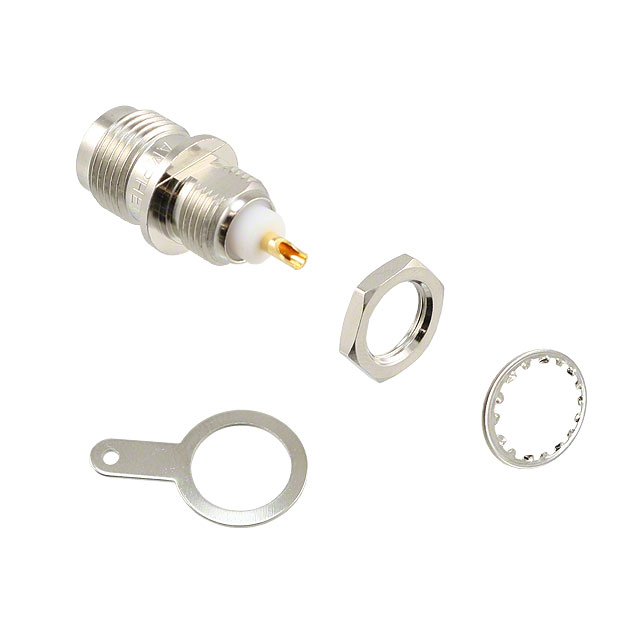

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 031-2301-RFX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 031-2301-RFX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 031-2301-RFX |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN TNC RCPT STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.391 | $1.335 | $1.224 | $1.168 | $1.113 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.974 | $0.946 | $0.807 | $0.751 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 031-2301-RFX | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN TNC RCPT STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47299 pcs | Data sheet | 031-2301-RFX Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder Tag | Series | - |
| Packaging | Bulk | Other Names | 0312301RFX 31-2301-RFX ARF1666 |
| Operating Temperature | -40°C ~ 155°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.18dB | Ingress Protection | - |
| Includes | 4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | Extended Insulation | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | TNC Connector Receptacle, Female Socket 50 Ohm Panel Mount Solder Cup |
| Contact Termination | Solder Cup | Connector Type | Receptacle, Female Socket |
| Connector Style | TNC | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
