000-36800

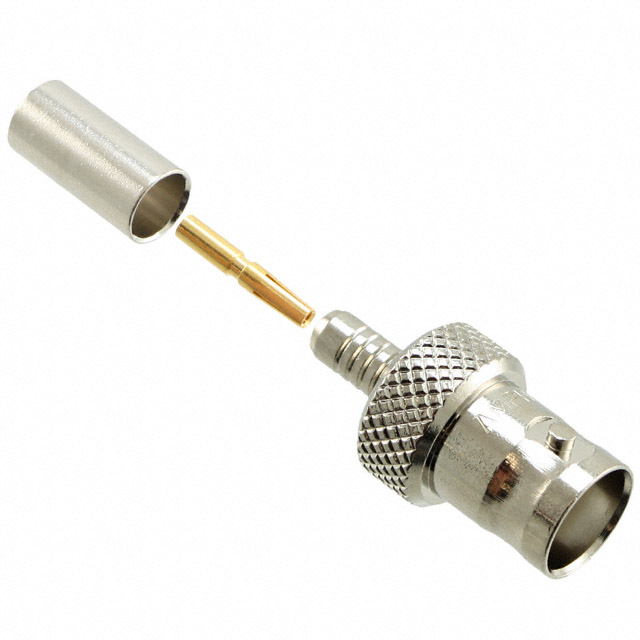

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 000-36800 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 000-36800 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 000-36800 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC JACK STR 50 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.873 | $8.008 | $7.672 | $7.193 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.953 | $6.569 | $6.378 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 000-36800 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC JACK STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5037 pcs | Data sheet | BNC Connector CatalogAssembly Instr C26a |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 36800 ARF1788 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.2dB | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line) Crimp |
| Contact Termination | Crimp | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
| Body Material | Brass | Body Finish | Nickel |
