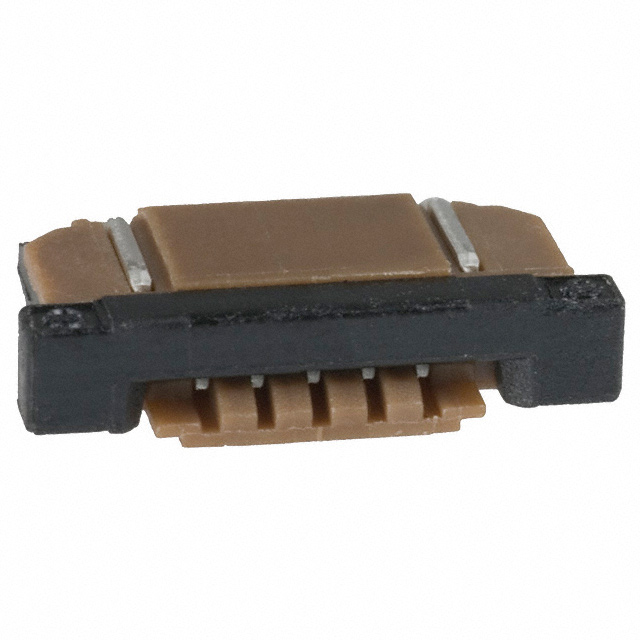

SFW5R-1STE1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SFW5R-1STE1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SFW5R-1STE1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SFW5R-1STE1 |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN FFC BOTTOM 5POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SFW5R-1STE1 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC BOTTOM 5POS 1.00MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6020 pcs | Data sheet | SFWxxR-1STAxxLF Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | SFW-R |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Operating Temperature | - | Number of Positions | 5 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled | Housing Color | Brown |
| Height Above Board | 0.106" (2.70mm) | Flat Flex Type | FFC, FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm, 0.33mm |
| Detailed Description | 5 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin Alloy | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight, Tapered | Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator Color | Black |
