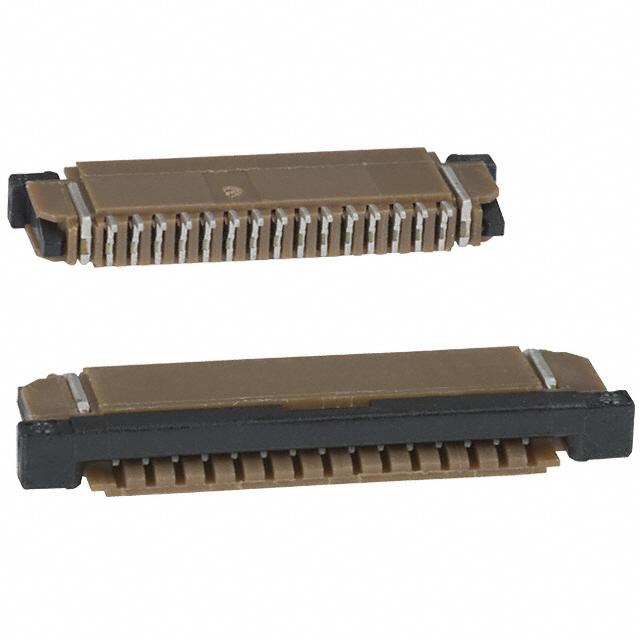

SFW15R-1STE1LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SFW15R-1STE1LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SFW15R-1STE1LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SFW15R-1STE1LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN FFC BOTTOM 15POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.292 | $0.256 | $0.241 | $0.231 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.221 | $0.201 | $0.181 | $0.161 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SFW15R-1STE1LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC BOTTOM 15POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 129420 pcs | Data sheet | SFWxxR-1/2STZExLF Dwg |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Series | SFW-R |
| Pitch | 0.039" (1.00mm) | Packaging | Cut Tape (CT) |
| Other Names | 609-1905-1 | Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 15 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled | Housing Color | Brown |
| Height Above Board | 0.106" (2.70mm) | Flat Flex Type | FFC, FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm, 0.33mm |
| Detailed Description | 15 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight, Tapered | Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator Color | Black |
