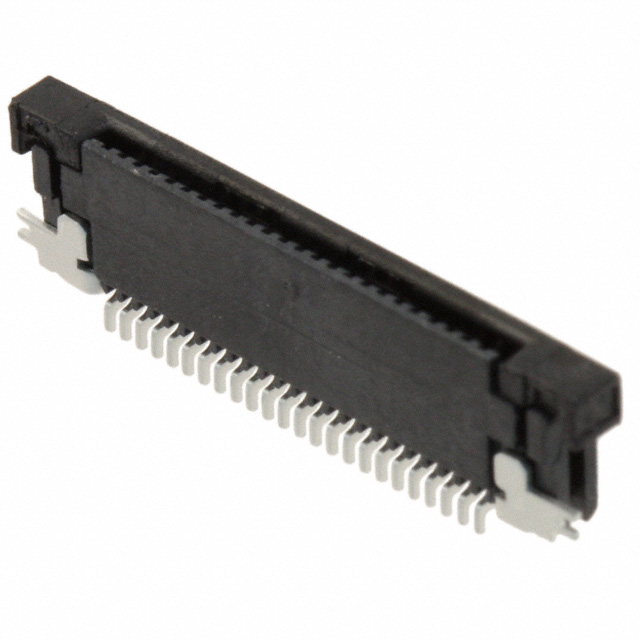

SFV24R-1STE1HLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SFV24R-1STE1HLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SFV24R-1STE1HLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SFV24R-1STE1HLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN FFC BOTTOM 24POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.287 | $0.254 | $0.239 | $0.229 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.219 | $0.199 | $0.179 | $0.159 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SFV24R-1STE1HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC BOTTOM 24POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 142906 pcs | Data sheet | SFVxR-(1,2)STxxHLF Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | SFV-R |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | 609-4320-1 | Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 24 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free | Housing Color | Black |
| Height Above Board | 0.071" (1.80mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm, 0.33mm |
| Detailed Description | 24 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight, Tapered | Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Actuator Color | Black |
