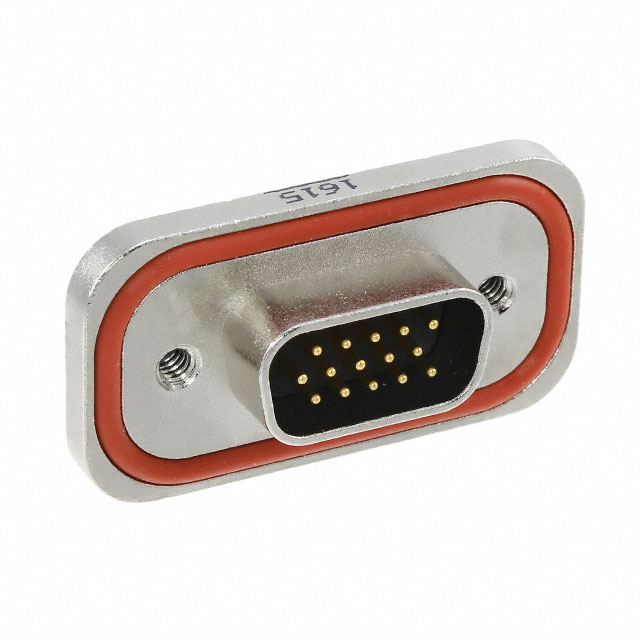

MDBRE15PEAN0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDBRE15PEAN0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDBRE15PEAN0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDBRE15PEAN0 |
|---|---|
| Manufacturer | Amphenol Commercial Products |
| Description | CONN D-SUB HD PLUG 15POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 48 pcs | 96 pcs | |
|---|---|---|---|---|---|
| $6.804 | $6.142 | $5.885 | $5.517 | ||
| 144 pcs | 288 pcs | 528 pcs | |||
| $5.333 | $5.039 | $4.892 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDBRE15PEAN0 | Manufacturer | Amphenol Commercial Products |
|---|---|---|---|
| Description | CONN D-SUB HD PLUG 15POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6866 pcs | Data sheet | MDBR Series Cut SheetHarsh Environment Connector CatalogMDBR Product SpecMDBR Series Datasheet |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 200V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Zinc, Nickel Plated |
| Series | MDBR | Packaging | Tray |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 3 |
| Number of Positions | 15 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP68 - Dust Tight, Waterproof | Housing Material | Thermoplastic, Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Features | Board Lock |
| Detailed Description | 15 Position D-Sub, High Density Plug, Male Pins Connector | Current Rating | 3A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub, High Density | Color | Black |
| Backset Spacing | - |
