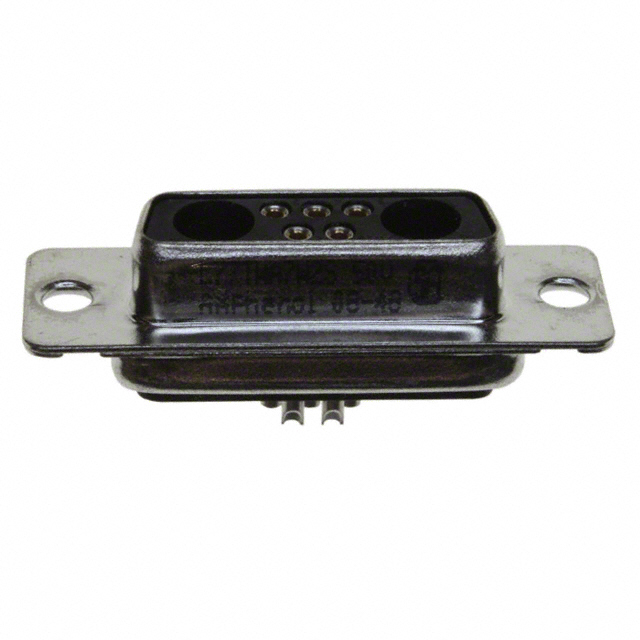

L77TWA7W2S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy L77TWA7W2S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy L77TWA7W2S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | L77TWA7W2S |
|---|---|
| Manufacturer | Amphenol Commercial Products |
| Description | CONN DSUB RCPT 7POS STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.335 | $2.237 | $2.043 | $1.946 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.848 | $1.654 | $1.556 | $1.405 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | L77TWA7W2S | Manufacturer | Amphenol Commercial Products |
|---|---|---|---|
| Description | CONN DSUB RCPT 7POS STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25386 pcs | Data sheet | TW Series Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 | Shell Material, Finish | Steel, Tin Plated |
| Series | TW | Packaging | Bulk |
| Operating Temperature | -55°C ~ 155°C | Number of Rows | 2 |
| Number of Positions | 7 (5 + 2 Coax or Power) | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Thermoplastic |
| Flange Feature | Housing/Shell (Unthreaded) | Features | - |
| Detailed Description | 7 (5 + 2 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector | Current Rating | 7.5A |
| Contact Type | Signal and Coax or Power (Not Included) | Contact Material | Bronze |
| Contact Form | Machined | Contact Finish Thickness | 16.0µin (0.41µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, Combo | Color | Black |
| Backset Spacing | - |
