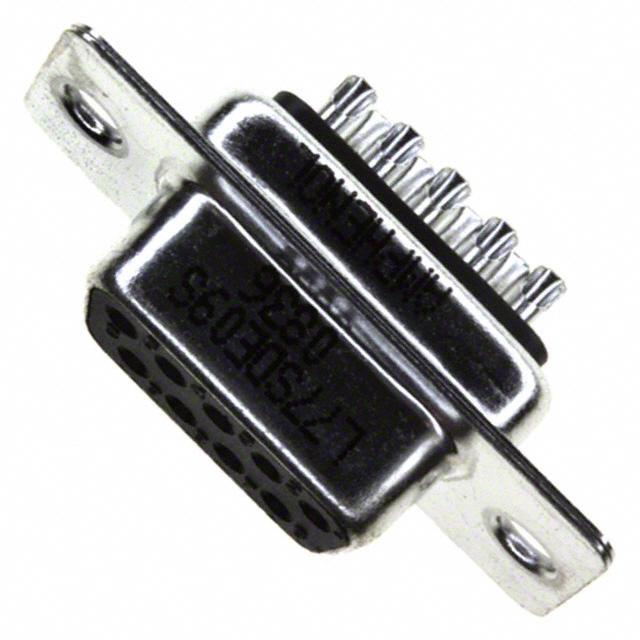

L77SDE09S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy L77SDE09S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy L77SDE09S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | L77SDE09S |
|---|---|
| Manufacturer | Amphenol Commercial Products |
| Description | CONN DSUB RCPT 9POS STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.296 | $0.259 | $0.244 | $0.234 | $0.223 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.203 | $0.183 | $0.162 | $0.147 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | L77SDE09S | Manufacturer | Amphenol Commercial Products |
|---|---|---|---|
| Description | CONN DSUB RCPT 9POS STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 162776 pcs | Data sheet | Preferred Parts Catalog |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder Cup |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | SD | Packaging | Bulk |
| Operating Temperature | -55°C ~ 155°C | Number of Rows | 2 |
| Number of Positions | 9 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Thermoplastic, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) | Features | - |
| Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 5A |
| Contact Type | Signal | Contact Material | Phosphor Bronze |
| Contact Form | Stamped | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | - |
