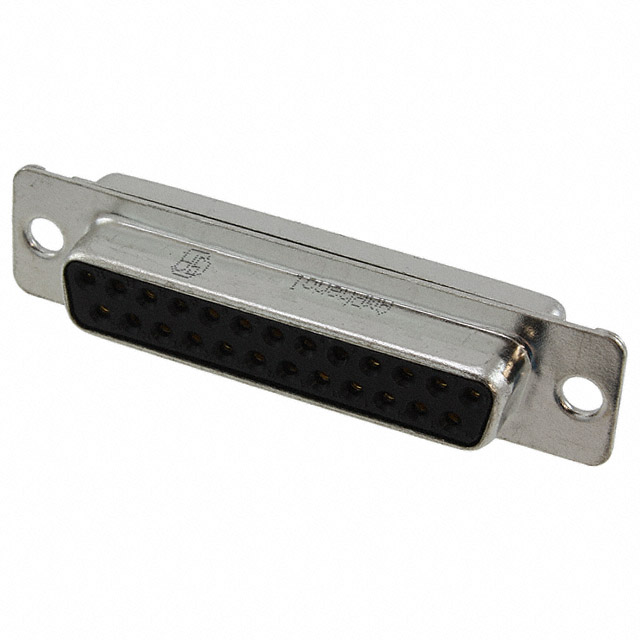

L77DB25SV
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy L77DB25SV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy L77DB25SV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | L77DB25SV |
|---|---|
| Manufacturer | Amphenol Commercial Products |
| Description | CONN D-SUB RCPT 25POS VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.317 | $3.926 | $3.828 | $3.533 | ||
| 200 pcs | 400 pcs | 600 pcs | 1000 pcs | ||
| $3.337 | $3.042 | $2.846 | $2.611 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | L77DB25SV | Manufacturer | Amphenol Commercial Products |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11479 pcs | Data sheet | Lyy7DyyyyV Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | D | Packaging | Tray |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions | 25 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Thermoplastic, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) | Features | - |
| Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 7.5A |
| Contact Type | Signal | Contact Material | Brass |
| Contact Form | Machined | Contact Finish Thickness | 8.00µin (0.203µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | - |
