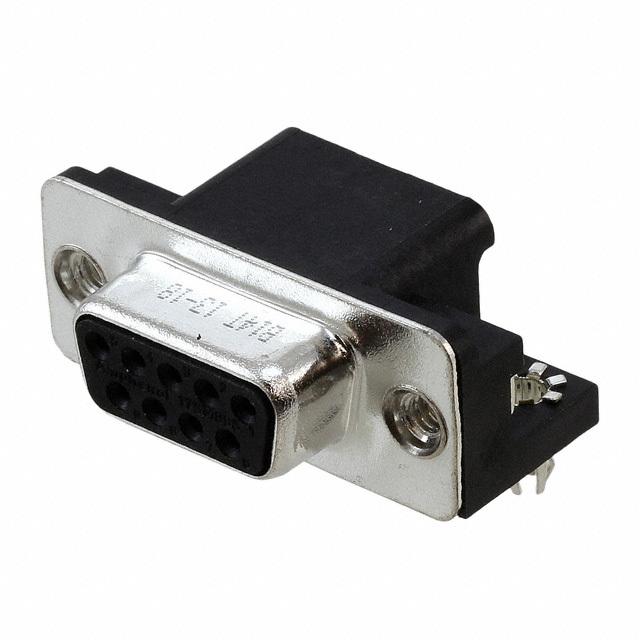

L17SM209SB14T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy L17SM209SB14T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy L17SM209SB14T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | L17SM209SB14T |
|---|---|
| Manufacturer | Amphenol Commercial Products |
| Description | CONN DSUB RCPT 9POS SMD R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.038 | $2.904 | $2.64 | $2.508 | ||
| 100 pcs | 361 pcs | 722 pcs | 1083 pcs | ||
| $2.442 | $2.178 | $2.046 | $1.809 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | L17SM209SB14T | Manufacturer | Amphenol Commercial Products |
|---|---|---|---|
| Description | CONN DSUB RCPT 9POS SMD R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19047 pcs | Data sheet | L17SM2 Series |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | SM2 | Packaging | Tube |
| Operating Temperature | 85°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 9 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Thermoplastic, Glass Filled |
| Flange Feature | Board Side (4-40) | Features | Board Lock |
| Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 3A |
| Contact Type | Signal | Contact Material | Brass |
| Contact Form | Stamped | Contact Finish Thickness | 31.5µin (0.80µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | - |
