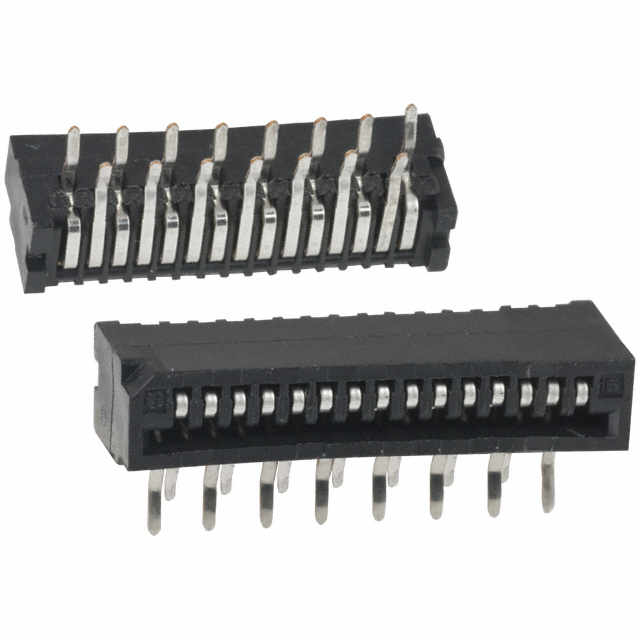

HLW15R-2C7LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HLW15R-2C7LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HLW15R-2C7LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HLW15R-2C7LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN FFC FPC TOP 15POS 1MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 6750 pcs | ||||
|---|---|---|---|---|---|
| $0.023 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HLW15R-2C7LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC FPC TOP 15POS 1MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1005089 pcs | Data sheet | HMS-MXN01 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Kinked Pin | Series | HLW-R |
| Pitch | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 609-1828 | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 15 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Housing Color | Black |
| Height Above Board | 0.154" (3.90mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 15 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Through Hole, Right Angle | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top |
| Cable End Type | Straight or Tapered | Actuator Material | - |
| Actuator Color | - |
