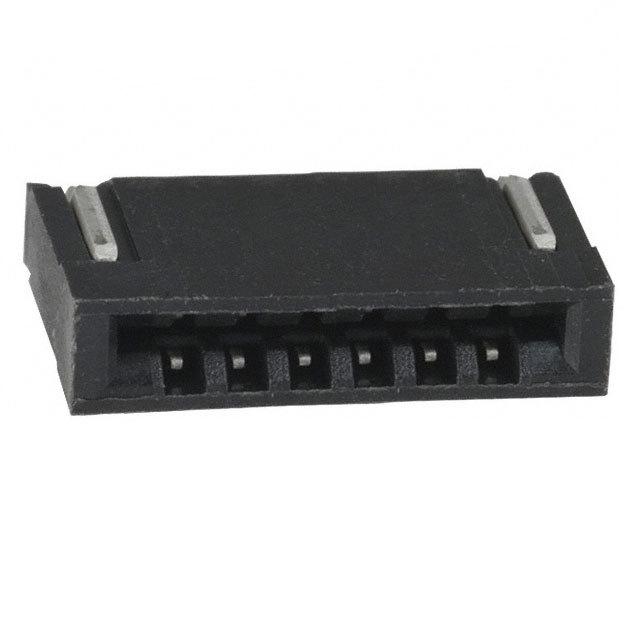

HFW6R-2STE1LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HFW6R-2STE1LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HFW6R-2STE1LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HFW6R-2STE1LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN FFC FPC TOP 6POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | ||
|---|---|---|---|---|---|
| $0.05 | $0.048 | $0.045 | |||
| 10000 pcs | 14000 pcs | 50000 pcs | |||
| $0.042 | $0.041 | $0.039 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HFW6R-2STE1LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC FPC TOP 6POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 477701 pcs | Data sheet | HFW12R-6STE1LF Dwg |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Series | HFW-R |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 609-1787-2 HFW6R2STE1LF |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 6 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA6T), Nylon 6T, Glass Filled | Housing Color | Black |
| Height Above Board | 0.075" (1.90mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 6 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top |
| Cable End Type | Straight or Tapered | Actuator Material | - |
| Actuator Color | - |
