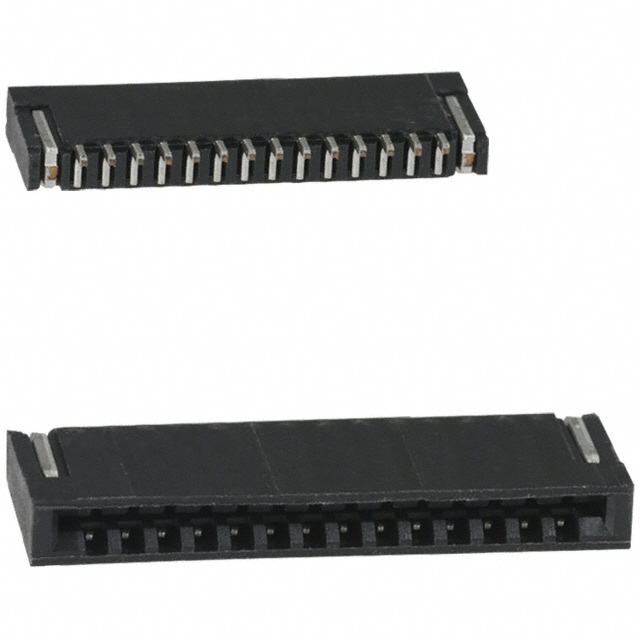

HFW14R-2STE1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HFW14R-2STE1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HFW14R-2STE1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HFW14R-2STE1 |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN FFC FPC TOP 14POS 1MM R/A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.066 | |||||
- Product parameter
Product parameter
| Part Number | HFW14R-2STE1 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC FPC TOP 14POS 1MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 342755 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Series | HFW-R |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 14 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 30 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 9 Weeks | Locking Feature | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Housing Color | Black | Height Above Board | 0.075" (1.90mm) |
| Flat Flex Type | FFC, FPC | Features | - |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 14 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin Alloy |
| Connector/Contact Type | Contacts, Top | Cable End Type | Straight or Tapered |
| Actuator Material | - | Actuator Color | - |
