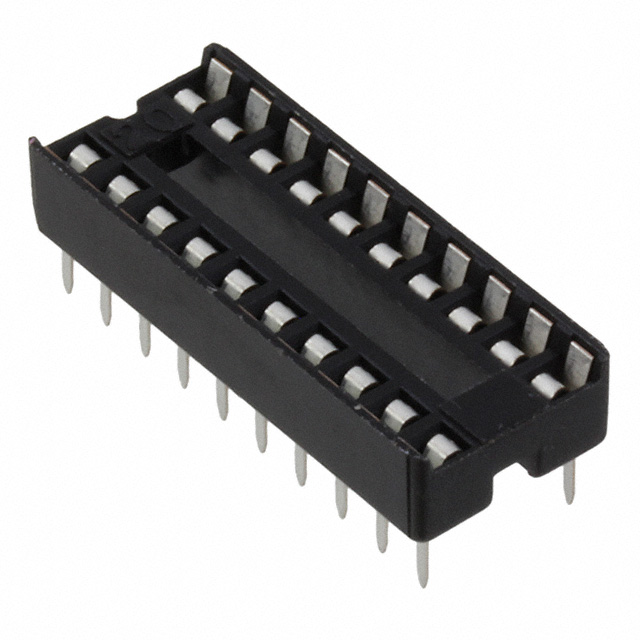

DILB20P-223TLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DILB20P-223TLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DILB20P-223TLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DILB20P-223TLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN IC DIP SOCKET 20POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 24 pcs | 48 pcs | 72 pcs | 120 pcs |
|---|---|---|---|---|---|
| $0.135 | $0.128 | $0.109 | $0.093 | $0.089 | |
| 264 pcs | 504 pcs | 1008 pcs | 2520 pcs | ||
| $0.08 | $0.077 | $0.064 | $0.058 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DILB20P-223TLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 20POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 350819 pcs | Data sheet | DILB Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.124" (3.15mm) | Termination | Solder |
| Series | - | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 609-4714 | Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 20 (2 x 10) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | Open Frame |
| Current Rating | 1A | Contact Resistance | 30 mOhm |
| Contact Material - Post | Copper Alloy | Contact Material - Mating | Copper Alloy |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
