DBM25S

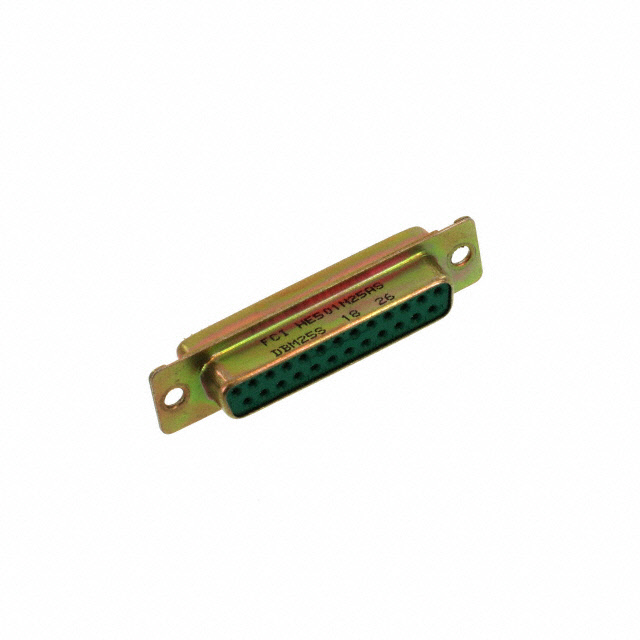

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DBM25S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DBM25S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DBM25S |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN D-SUB RCPT 25P STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $6.097 | $5.663 | $5.082 | $4.937 | ||
| 120 pcs | 280 pcs | 520 pcs | |||
| $4.356 | $4.066 | $3.979 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DBM25S | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25P STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8693 pcs | Data sheet | C-DSUB-0150 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Yellow Cadmium Plated |
| Series | DM HE501 | Packaging | Bulk |
| Other Names | 609-5897 DBM25SFC DBM25SFC-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Thermoplastic | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | - | Backset Spacing | - |
