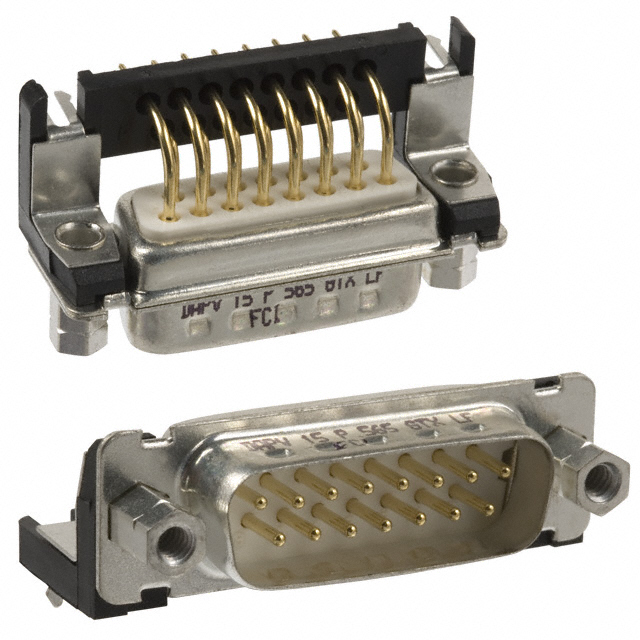

DAPV15P565GTXLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DAPV15P565GTXLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DAPV15P565GTXLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DAPV15P565GTXLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN D-SUB PLUG 15POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1600 pcs | ||||
|---|---|---|---|---|---|
| $2.428 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DAPV15P565GTXLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN D-SUB PLUG 15POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12811 pcs | Data sheet | DP Series D-Sub A/S Connector Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | DP | Packaging | Tray |
| Other Names | 609-2830 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Thermoplastic | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock, Grounding Indents | Detailed Description | 15 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold, GXT™ |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | - | Backset Spacing | 0.406" (10.30mm) |
