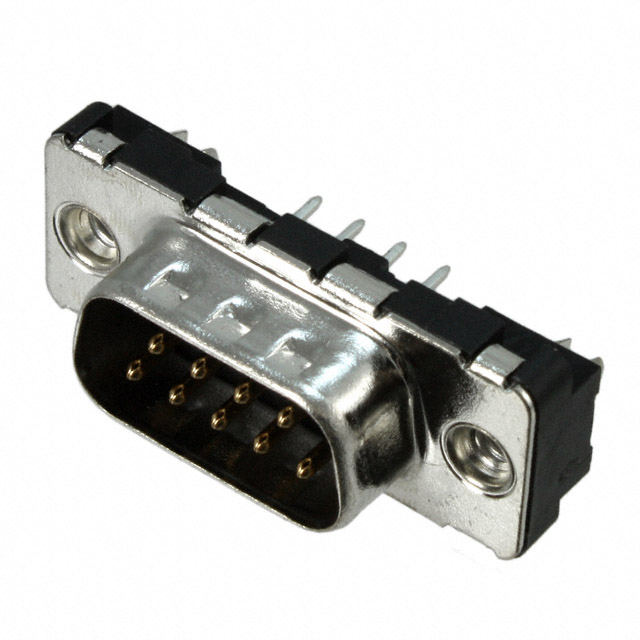

D09P24A4GX00LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D09P24A4GX00LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D09P24A4GX00LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D09P24A4GX00LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN D-SUB PLUG 9POS VERT SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.766 | $0.696 | $0.653 | $0.625 | $0.596 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.539 | $0.497 | $0.426 | $0.397 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D09P24A4GX00LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN D-SUB PLUG 9POS VERT SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98124 pcs | Data sheet | DxxP24AxGX00(LF) Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | Delta D | Packaging | Tray |
| Other Names | 609-4447 D09P24A4GX00LF-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Grounding Indents | Detailed Description | 9 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
