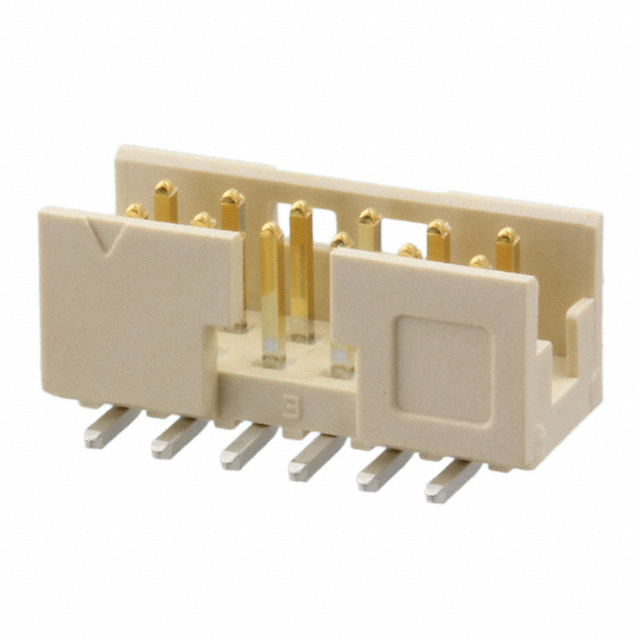

98424-F52-12ALF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 98424-F52-12ALF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 98424-F52-12ALF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 98424-F52-12ALF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | MINITEK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | 1200 pcs | 1800 pcs | 3000 pcs | 6000 pcs |
|---|---|---|---|---|---|
| $0.438 | $0.376 | $0.363 | $0.351 | $0.333 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 98424-F52-12ALF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | MINITEK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60600 pcs | Data sheet | 98424 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V (AC/DC) |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Minitek® |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 609-4808-2 98424-F52-12ALF-ND |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.244" (6.20mm) | Insulation Color | Cream |
| Ingress Protection | - | Features | Keying Slot, Pick and Place |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount 12 position 0.079" (2.00mm) |
| Current Rating | 2A (AC/DC) | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.157" (4.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
