98414-F06-08ULF

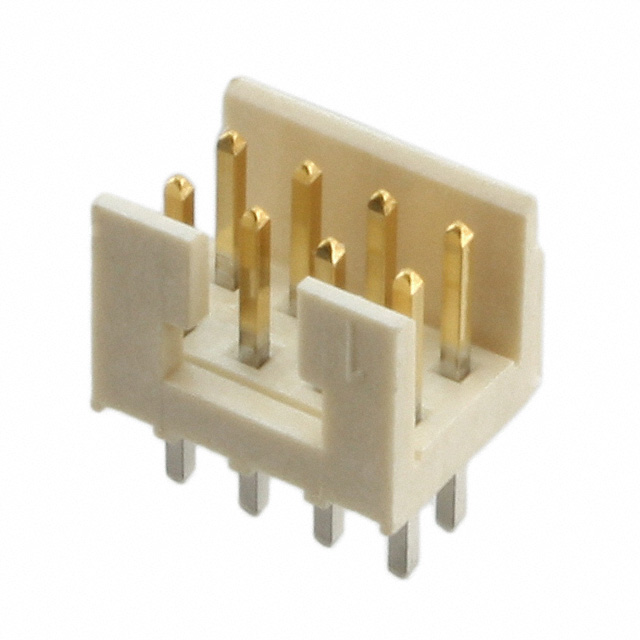

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 98414-F06-08ULF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 98414-F06-08ULF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 98414-F06-08ULF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 8POS 2MM STR DL PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.209 | $0.195 | $0.15 | $0.13 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.107 | $0.094 | $0.088 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 98414-F06-08ULF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 8POS 2MM STR DL PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 218916 pcs | Data sheet | 98414 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V (AC/DC) |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Minitek® |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 609-5168 98414-F06-08ULF-ND |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.232" (5.90mm) |
| Insulation Color | Cream | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 8 position 0.079" (2.00mm) | Current Rating | 2A (AC/DC) |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.098" (2.50mm) |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold, GXT™ | Connector Type | Header |
| Applications | - |
